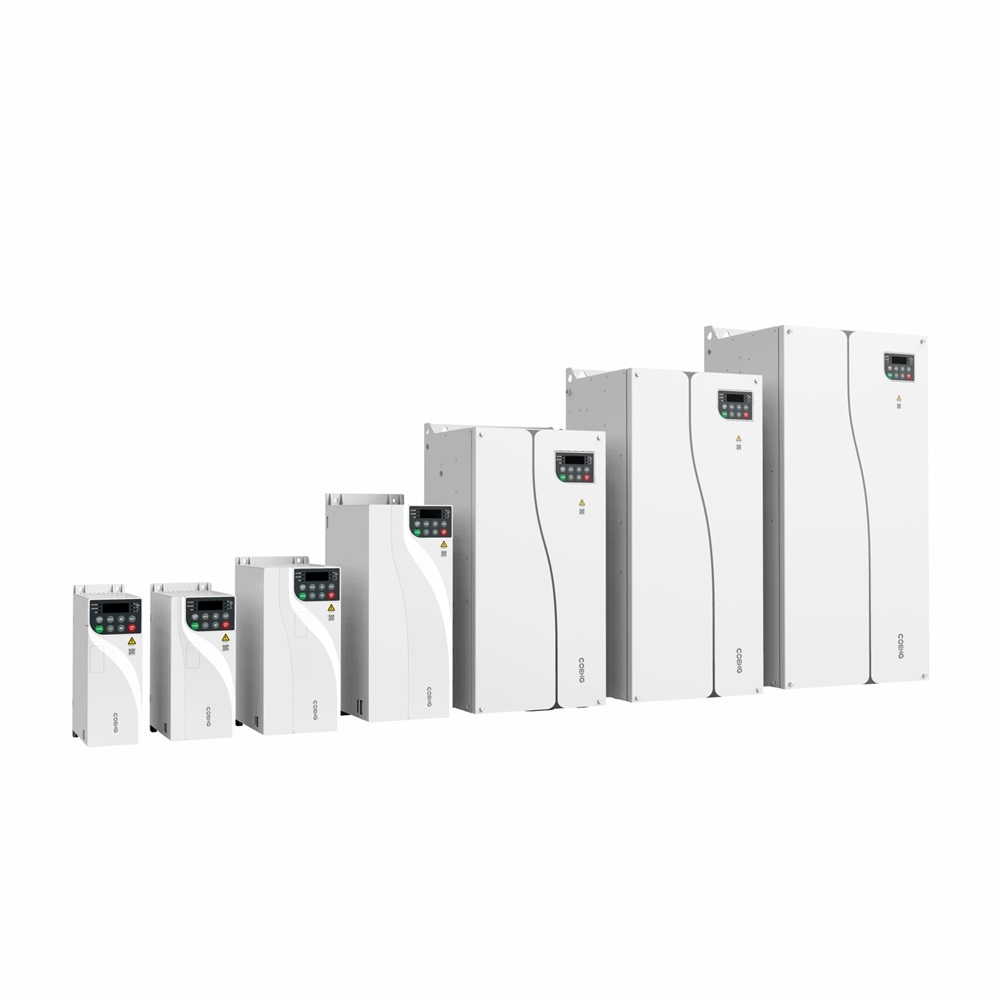

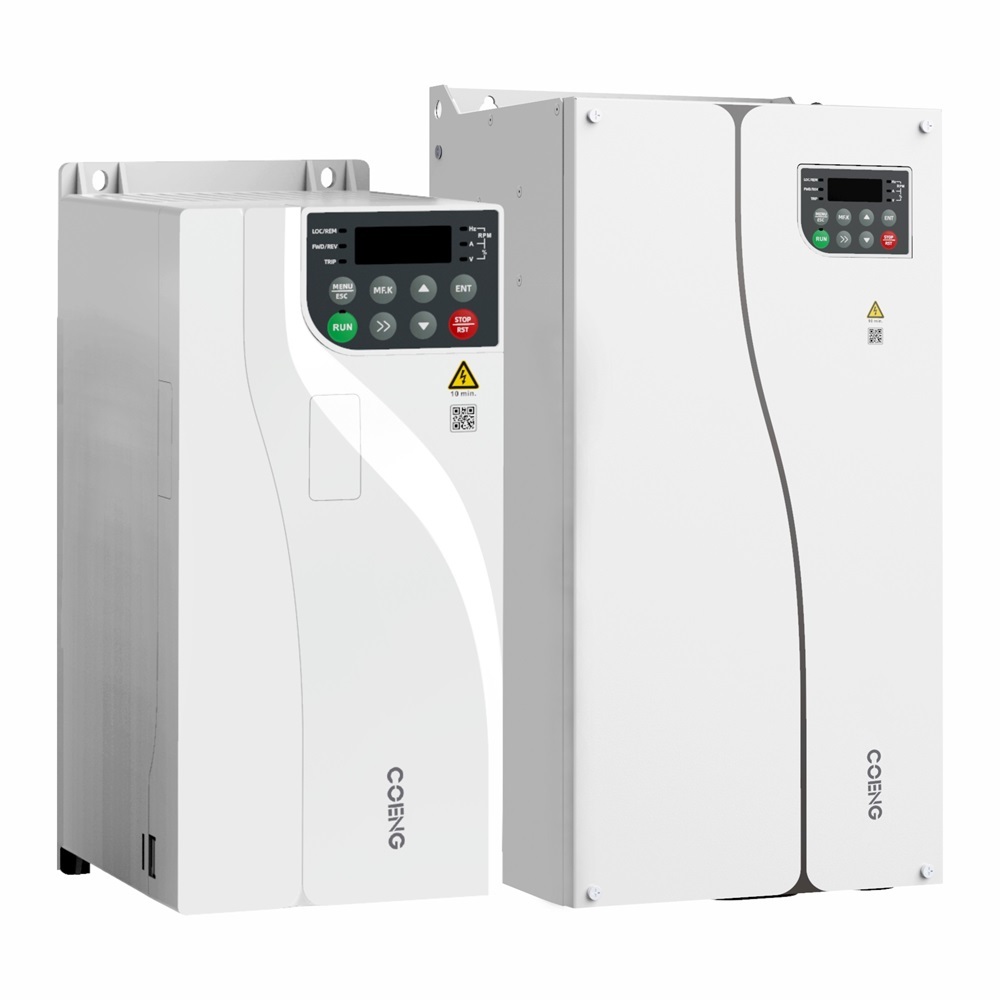

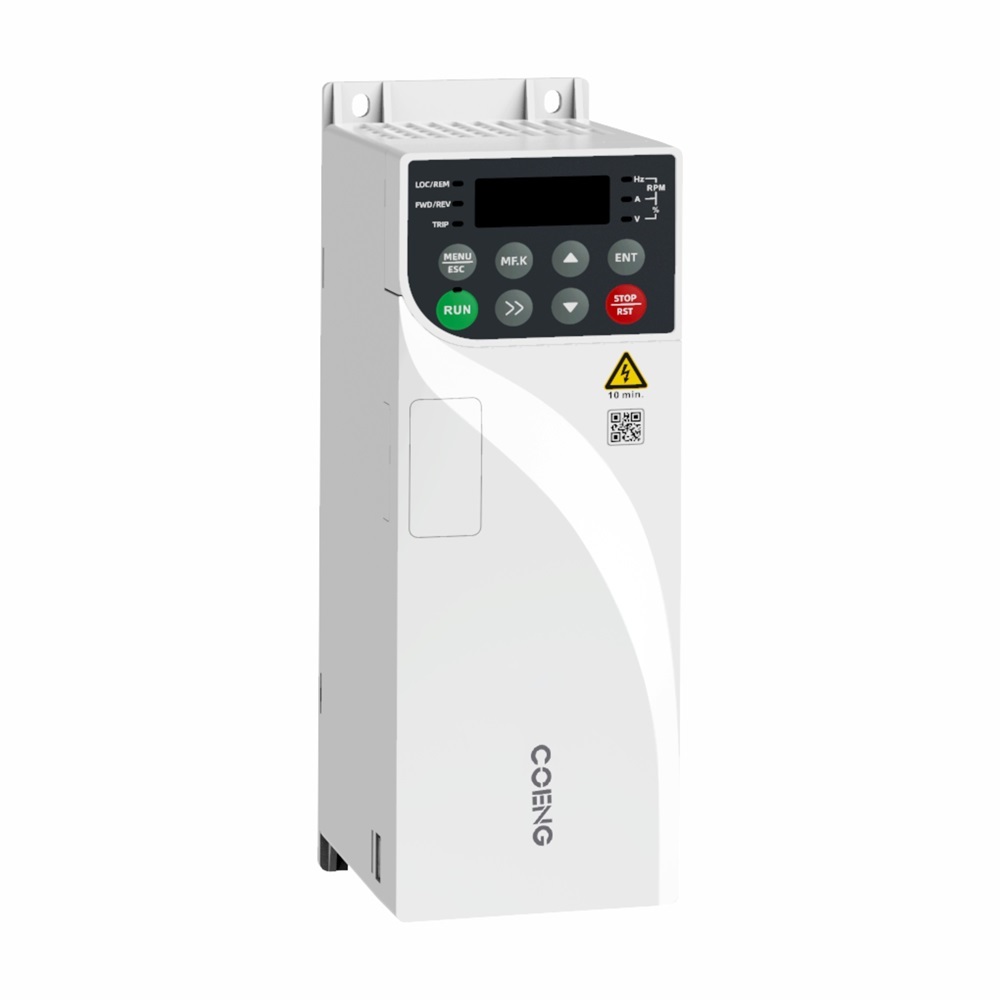

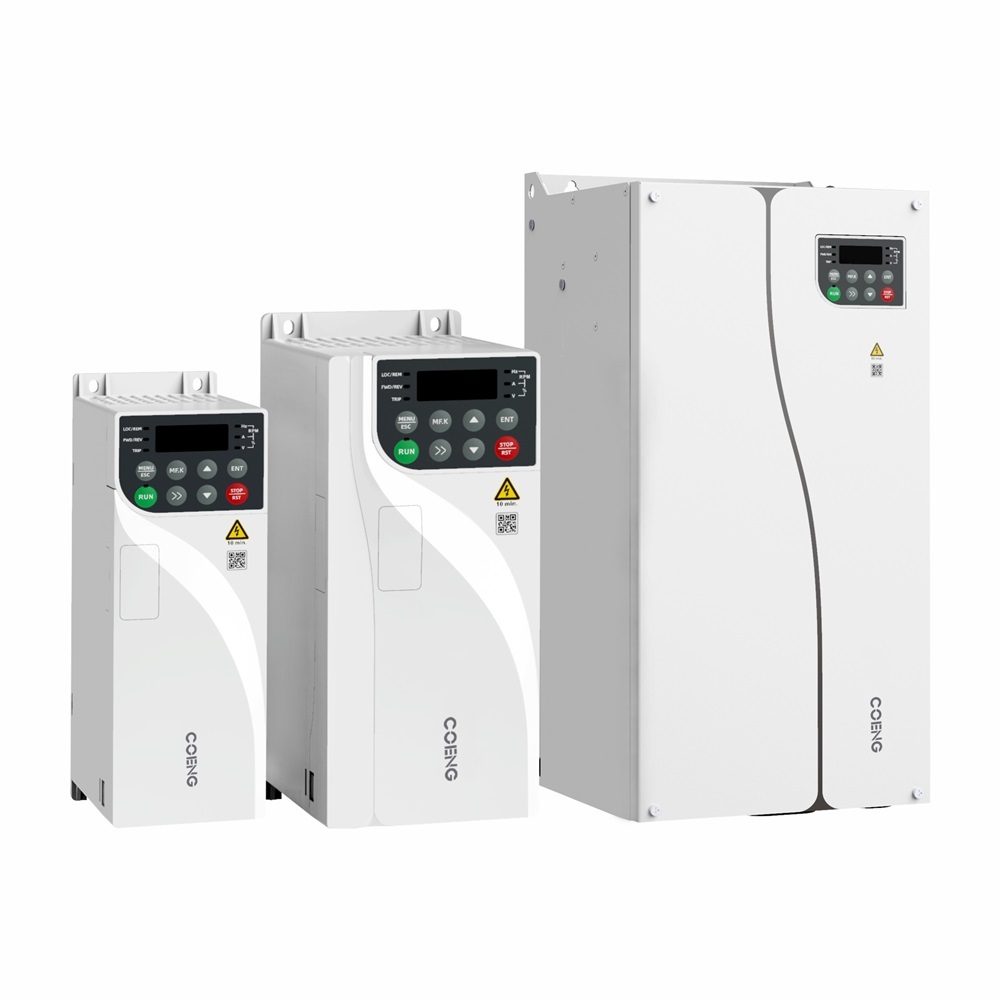

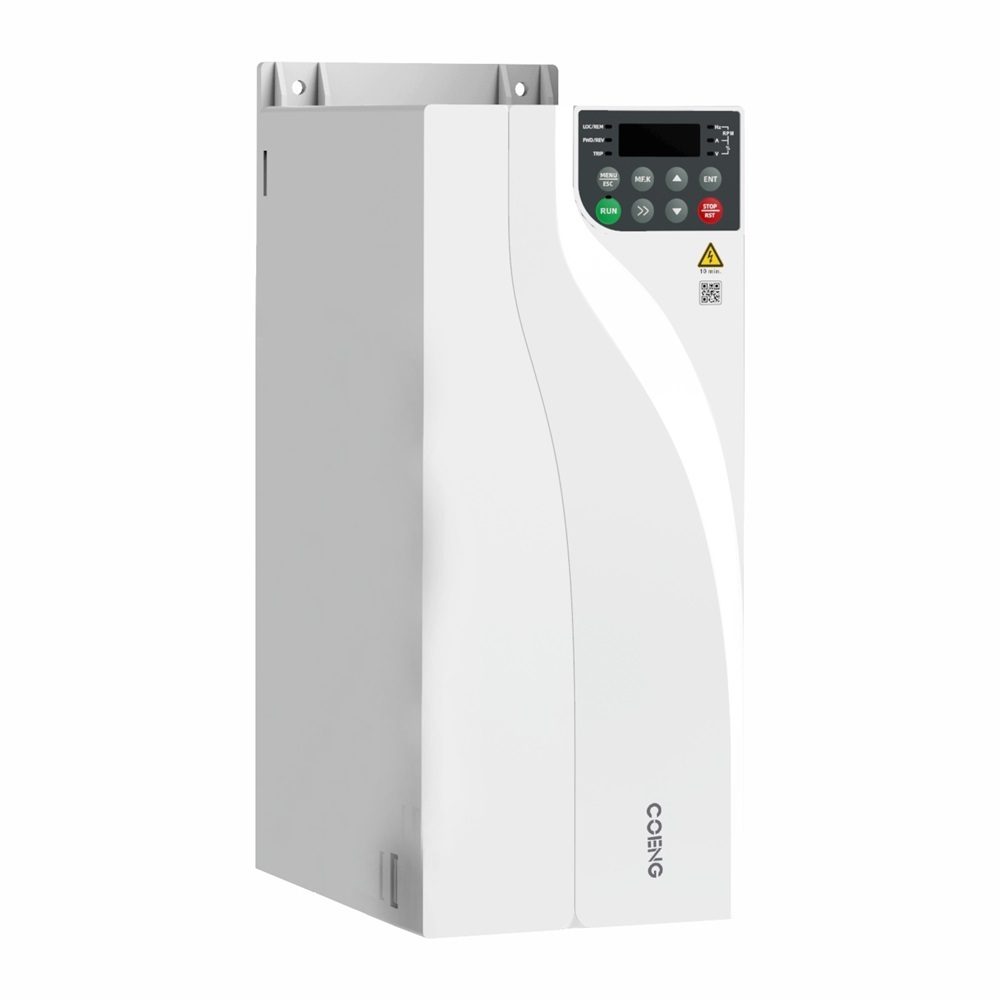

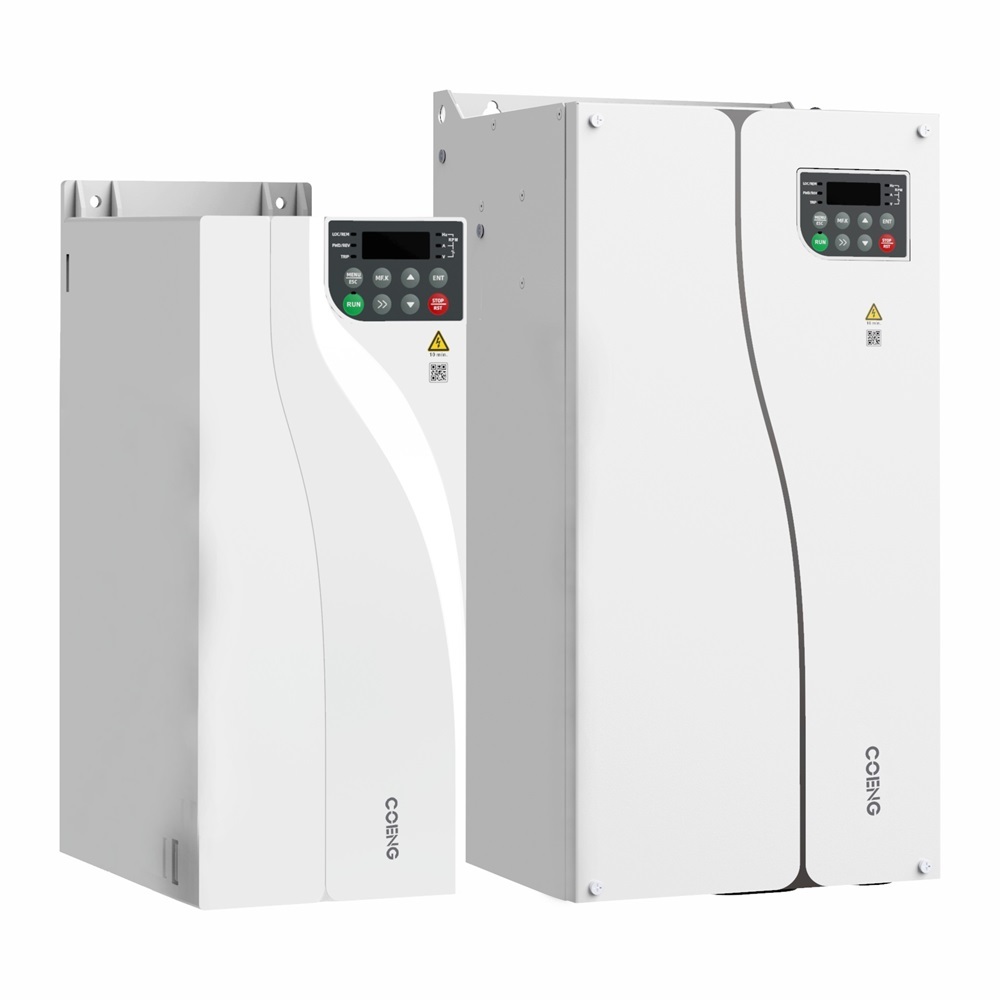

Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences

  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
  • Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম COENG
সাক্ষ্যদান CE
মডেল নম্বার HV350
নথি HV350.xlsx
ন্যূনতম চাহিদার পরিমাণ 1
প্যাকেজিং বিবরণ শক্ত কাগজ, প্লাইউড কেস
ডেলিভারি সময় 10-30 কার্যদিবস
পরিশোধের শর্ত এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা 20000সেট/বছর

বিনামূল্যে নমুনা এবং কুপন পেতে আমার সাথে যোগাযোগ করুন।

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন সমস্যা হয়, আমরা ২৪ ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
ইনপুট ভোল্টেজ ইনপুট ভোল্টেজ: 380V (-15%) থেকে 480V (+10%) ফেজ: তিন-ফেজ ইনপুট পাওয়ার ফ্রিকোয়েন্সি 50Hz/60Hz ± 5%
আউটপুট ভোল্টেজ 0V~ইনপুট ভোল্টেজ আউটপুট ফ্রিকোয়েন্সি 0～600Hz
মাস্টার কন্ট্রোল মোটর টাইপ অ্যাসিঙ্ক্রোনাস মোটর মাস্টার কন্ট্রোল স্পিড রেঞ্জ 1:10 V/F; 1:100 OLVC; 1:1000 CLVC
মাস্টার কন্ট্রোল মোড V/F, OLVC (ওপেন-লুপ ভেক্টর কন্ট্রোল), CLVC (ক্লোজড-লুপ ভেক্টর কন্ট্রোল)
বিশেষভাবে তুলে ধরা

programmable vector frequency inverter

,

16-step multi-speed inverter

,

terminal control frequency inverter
একটি বার্তা রেখে যান
পণ্যের বর্ণনা
ItemSpecification Description and Technical Data
Power input/outputInput voltageInput voltage: 380V (-15%) to 480V (+10%) Phase: Three-phase
Input power frequency50Hz/60Hz ±5%
Input voltage imbalance≤3%
Output voltage0V~Input voltage
Output frequency0～600Hz
Master control performanceMotor typeAsynchronous motor
Control modeV/F, OLVC(Open-loop Vector Control)
Speed range1:100 V/F; 1:200 OLVC
Starting torqueOLVC: 150%(0.25Hz)
Torque precision±5% (OLVC, above 5Hz)
Torque ripple≤±5%, in Vector control mode
Speed stabilityOLVC, 0.2%
Torque response≤5ms, in Vector control mode
Acceleration/deceleration time0.0s~3200.0s; 0.0min~3200.0min
Torque boost0.0%~30.0%
Overload capacityG type: 150% 1min/5min; 180%10s/5min; P type: 110% 1min/5min; 150% 10s/5min
V/F curveStraight-line type, multi-point type, V/F Half separation mode, V/F complete separation mode
Input frequency resolutionDigital setting: 0.01Hz, Analog setting: maximum frequency *0.025%
Main functionsAcceleration/deceleration curveStraight line and S-curve
Simple PLC, Multi-speed control16 speed segments supported through control terminals
Automatic voltage regulation (AVR)Automatically keeps the output voltage constant when grid voltage varies within a certain range
Fixed length controlControl with given length
Built-in PIDEasily forms a closed-loop control system
Multi-motor switchingSwitchover between two groups of motor parameters to control the two motors
Virtual I/O8 groups of virtual VDI/VDO, 3 groups of AI as DI, enabling simple logic control
Overvoltage/Overcurrent stall controlAutomatic current and voltage limitation during operation preventing the inverter from tripping due to frequent overcurrent or overvoltage
Restart after power failureAfter power failure and restoration, the inverter waits for a set time before automatically running
Quick current limitingAvoids frequent overcurrent faults in the inverter
Power input/outputFrequency setting methodKeypad; terminal UP/DOWN; multi-reference; pulse reference; communication
Analog input terminalsAI1; AI2: 0V~10V/ 0 (4)mA~20mA
Digital input terminalsDI1-DI5, 5 programmable digital input terminals with opto-isolation, compatible with both
sinking/sourcing inputs.
DI5 supports high-speed pulse input with a maximum input frequency of 100kHz.
Digital output terminalsOpen-collector output; output voltage range: 0V~24V; current load capacity: 50mA.
DO1 supports high-speed pulse output with a maximum output frequency of 100kHz.
Analog output terminals1-channel 0V ~ 10V/0(4)mA ~ 20mA
Relay output1-channel Form C contact, NO+NC
CommunicationCommunication protocolsModbus RTU (standard configuration); Profibus-DP; Profinet IO; CANopen; Modbus TCP/IP; Ethercat; EtherNet/IP (optional configuration)
Ambient requirementsAltitude≤1000m: no need for derating
1000~3000m: current derating by 1% per 100m increased
Ambient temperature-25℃～+40℃ (Running with derating allowed between 40~55)
Humidity15% ~ 95%, No condensation
Vibration3M3, IEC60721-3-3
Storage temperature−40°C~+70°C
Installation placeIndoor, without direct sunlight, free from flammable, corrosive gases, liquids, and conductive particles.
Optional accessoriesCommunication expansion card, I/O terminal expansion cards
ProtectionsProtection against short circuit , overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, etc.
Installation methodInstalled in a cabinet
Protection ratingIP20
Cooling methodAir cooling
Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences 0 Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences 1 Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences 2

  1. Switzerland
    Achieve precision in pharmaceutical and watchmaking industries with the inverter’s micro-frequency resolution (0.01Hz) and stable vector control. The modular expansion supports Switzerland’s high-precision engineering.

  2. Austria
    Integrate into alpine industrial systems using the inverter’s altitude derating and robust housing. Features like multi-reference frequency setting enhance Austria’s automotive and hydropower applications.

  3. Belgium
    Optimize food and beverage processing with the inverter’s hygienic design options and quick-response digital outputs. The built-in PID ensures consistent quality in Belgium’s manufacturing lines.

  4. Denmark
    Drive wind energy and automation projects with the inverter’s grid-friendly output and CANopen support. Its user-friendly interface and reliable performance cater to Denmark’s green technology focus.

  5. Finland
    Withstand sub-Arctic conditions using the inverter’s wide storage range and anti-freeze protection. The simple PLC and communication protocols benefit Finland’s forestry and data centers.

  6. United Arab Emirates
    Excel in high-heat urban projects with the inverter’s advanced cooling and sun-resistant casing. The quick installation and multi-protocol communication support UAE’s construction and smart city initiatives.
