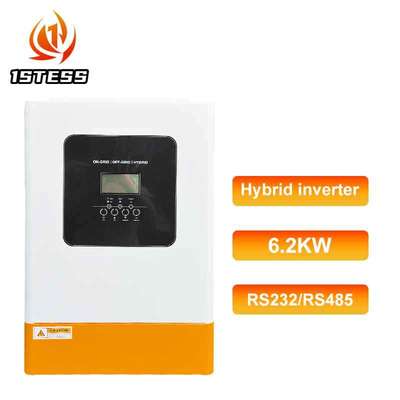

Hybrid Solar Inverter 5.5kW 48V Single Phase Pure Sine Wave with MPPT & WiFi Monitoring

উৎপত্তি স্থল গুয়াংডং, চীন
পরিচিতিমুলক নাম COENG
সাক্ষ্যদান CE, IEC
মডেল নম্বার GM (PV60-500VDC) 6200-48PL
নথি GM Series 5.5 - 6.2KW.pdf
ন্যূনতম চাহিদার পরিমাণ 1
প্যাকেজিং বিবরণ কার্টন, প্যালেট
ডেলিভারি সময় 10-30 কাজ করার দিন
পরিশোধের শর্ত এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা 20000 পিস/মাস

বিনামূল্যে নমুনা এবং কুপন পেতে আমার সাথে যোগাযোগ করুন।

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন সমস্যা হয়, আমরা ২৪ ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
আকার 450*300*130 মিমি ব্যাটারি ভোল্টেজ 48 ভি
ইনপুট ভোল্টেজ 230vac OEM OEM গ্রহণ করুন
বৈদ্যুতিন সংকেতের মেরু বদল টাইপ হাইব্রিড সৌর বৈদ্যুতিন সংকেতের মেরু বদল আউটপুট টাইপ একক, খাঁটি সাইন ওয়েভ
মোট ওজন 10 কেজি
বিশেষভাবে তুলে ধরা

5.5kW hybrid solar inverter

,

48V pure sine wave inverter

,

MPPT WiFi solar inverter

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

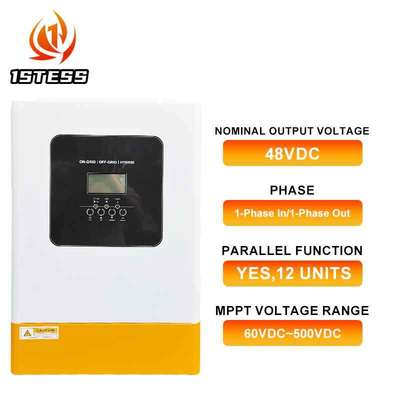

MODEL GM5500-48PL GM6200-48PL
Phase 1-Phase In/1-Phase Out 1-Phase In /1-Phase Out
Maximum PV input power 5500W 6500W
Parallel Function YES,12 Units YES,12 Units
Communication Port RS232+RS485+ External CT Port RS232+RS485+ External CT Port
Battery Voltage 48VDC 48VDC

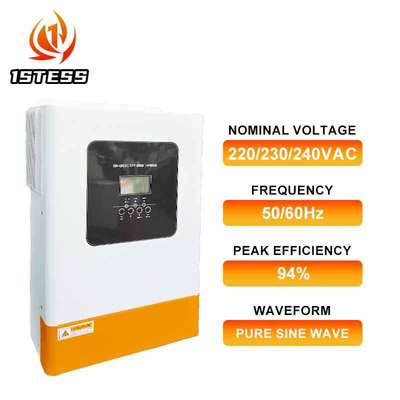

Nominal Output Voltage 220/230/240VAC 220/230/240VAC

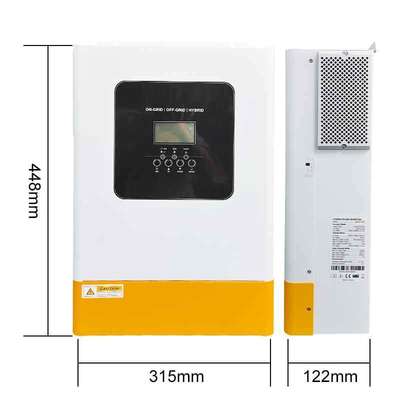

Dimension, D xW x H(mm) 448*315*122 450x300x130
Product Features.
  1. Self-consumption and Feed-in to the grid
  2. Programmable multiple operation modes: Grid-tie ,off-grid and grid-tie with backup
  3. Backflow prevention viaexternalCTsensor and grid connection function
  4. Paralleloperation up to12 unitsin1phaseor 3phase
  5. Direct Plug WlFl Dongle Supported
  6. Output power factor 1.0
  7. High PVinput voltagerange 500Vdc Max
  8. Built-in MPPTsolar controller100/120A
  9. WiFiremote monitoring optiona
  10. Detachable dustcoverforharshenvironment
  11. User-adjustable charging current and voltage
  12. Programmable supply priority for PV, Battery or Grid
  13. Support multiple output priority:SBU/SUB/SUF/ZEC
  14. EQ function to optimize battery performance and extend lifecycle
Company Introduction

Shenzhen First Tech Co., Ltd was established in 2017, which is a one-stop solution provider of solar & battery energy storage system.

First Tech is engaged in the research, development, production, sales and service of the commercial and industrial energy storage system, home energy storage system, lithium-ion battery pack, solar hybrid inverter. solar optimizer etc.

First Tech is located in Shenzhen City, Guangdong Province, China, the factory have passed lS09001,1S014001,1S045001 managementsystem certification and the products have obtained TUV-CB, CEIEC,EMC MSDS, UN38.3, etc certificates. The products are exported toclients in such countries and regions as Europe, Africa, Middle East,North America,South America, Southeast Asia, etc.

Except providing it's own standard products, First Tech also welcome OEM & ODM orders, and will provide professional service and quality products with competitive prices to customers and market.

First Tech is committed to becoming a global leading solar & ESS solution provider to provide green energy and contribute to cleanerworld.

Enjoy New Life, Starting with First Tech!
