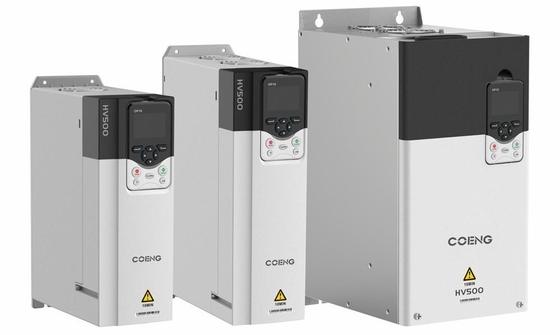

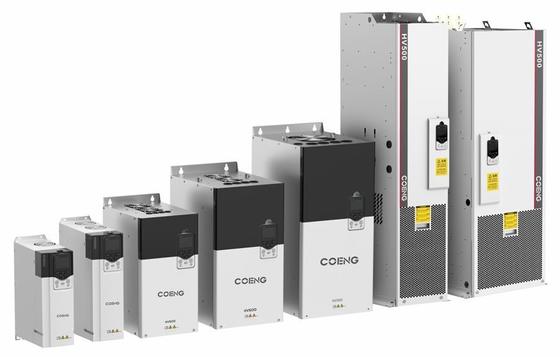

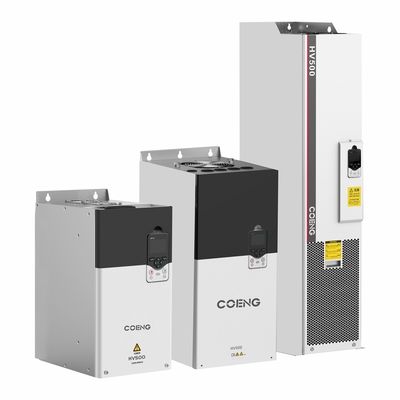

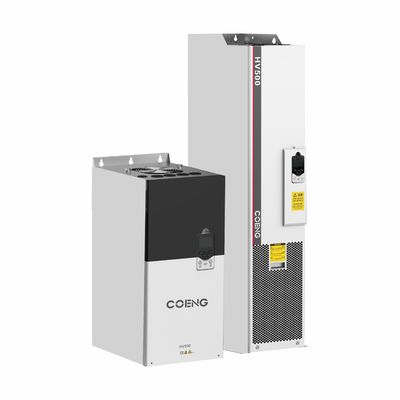

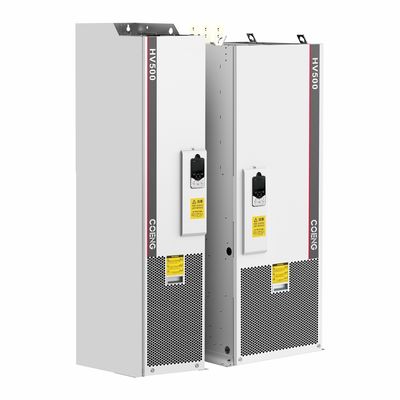

High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance

  • High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
  • High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
  • High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
  • High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
  • High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
  • High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
উৎপত্তি স্থল চীন
পরিচিতিমুলক নাম COENG
সাক্ষ্যদান EC
মডেল নম্বার HV500
ন্যূনতম চাহিদার পরিমাণ 1
প্যাকেজিং বিবরণ শক্ত কাগজ, প্লাইউড কেস
ডেলিভারি সময় 10-30 কাজ করার দিন
পরিশোধের শর্ত এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা 20000সেট/বছর

বিনামূল্যে নমুনা এবং কুপন পেতে আমার সাথে যোগাযোগ করুন।

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন সমস্যা হয়, আমরা ২৪ ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
সুরক্ষা গ্রেড আইপি 20 শীতল উপায় জোর করে এয়ার কুলিং
দক্ষতা 5.5kW~22kW: ≥93%; 5.5kW~22kW: ≥93%; Above 30kW: ≥95% 30kW এর উপরে: ≥95% ইনপুট ভোল্টেজ 200V (-15%) ~240V (+10%) 3ফেজ , 380V (-15%) ~480V (+10%) 3ফেজ, 500V (-15%) ~690V (+10%) 3ফেজ
ইনপুট ফ্রিকোয়েন্সি 50Hz/60Hz±5% আউটপুট ভোল্টেজ 0V~ইনপুট ভোল্টেজ
আউটপুট ফ্রিকোয়েন্সি 0Hz~500Hz
বিশেষভাবে তুলে ধরা

High-Efficiency Smart Drive VFD

,

30kW+ Systems Frequency Inverter

,

Energy Saving VFD Inverter
একটি বার্তা রেখে যান
পণ্যের বর্ণনা
Operation panel
HIC200-OP-10-W is a smart operator panel developed independently for high-performance transmission products, which is informative, friendly
and easy to use, and according to the different configurations of the panel, it is divided into two kinds: wiFi function and without WiFi function,
which are conveniently applied to high-performance, single transmission, multi-VFDs system, it can monitor and adjust the system.

Accessory
Optional Module Function
Keyboard Base HVKMB Depending on the situation, the base can be installed in the specified position and the drive
can be operated by operating the keyboard
Communication Adapter HVCOM-USB The drive can achieve high-speed communication with the computer via this option
Profibus-DP Expand Card HVCOM-DP It is for Profibus-DP bus communication, It can fulfill the monitoring and diagnostics of inverters
ABZIncremental Code
disk Expansion Card		 HVPG-ABZ Code disk expansion card, incremental code disk for ABZ signal output, power programmable control, compatible single/bipolar output of the code disk
CANopen Expansion Card HVCOM-CAN It is for CANopen bus commnication, it can fulfill the monitoring and diagnostics of inverters
Three-phase voltage
detection module		 HVVMU Detection of three-phase voltage, it can be used for permanent magnetic synchronous motor
soft start grid, speed tracking and other functions

Technical Specification


Technical Specification
Input/output
Power		 Input Uin 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase,
500V (-15%) ~690V (+10%) 3Phase
Input Frequency 50Hz/60Hz±5%
Unbalance Degree of Uin ≤3%
Output Uout 0V~Input Uin
Output Frequency 0Hz~500Hz
Control
Performance		 Motor Type Asynchronous / Synchronous
Control Method V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control)
Range of Speed Regulation 1:10 V/F, 1:100 OLVC, 1:1000 CLVC
Start Torque VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz)
Torque Precision ≤5%, Vector Control
Torque Pulsation ≤5%, Vector Control
Speed Regulation Precision OLVC 0.2%, CLVC 0.01%
Torque Response ﹤5ms, Vector Control
Dynamic Speed Reduction OLVC＜0.5%*s, CLVC＜0.3%*s
Acceleration and Deceleration Time 0.0s~3200.0s, 0.0min~3200.0min
Torque Lifting 0.0％~30.0％
Overload Heavy Load Application 150% 1min/5min, Light Load Application 110% 1min/5min
V/F Curve Multiple ways: linear V/F curve, 5 kinds of torque reduction characteristic curve mode (2.0 power, 1.8 power, 1.6 power, 1.4 power, 1.2 power), user-defined VF curve
Input Frequency Accuracy Digital: 0.01Hz, Analog: 0.01Hz
Control
Performance		 Acceleration and Deceleration Curve Straight, S Curve
Multiple Speed-Steps Operation 16-Speed Steps Operation through control terminals
Automatic VoltageAdjustment
(AVR)		 Keeping the output voltage constant automatically when the grid voltage changes within a certain range
Fixed Length Setted and Fixed Length Control
In-build PID It Can Easily Constructed Closed loop control system
Enhencement Function Free Function Block
Input/output
Power		 Set Frequency Keyboaed, UP/DOWN Terminals, Multiple Speed-Steps Operation, Terminals Pulsation, Com
Analog Input Terminals AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA
Digital Input Terminals DI1-DI6, 6 programmable digital input terminals, optocoupler isolation, compatible with drain/source input
Digital Input/Output Terminals DIO1: Fast pulse output, normal input/output; DIO2: fast pulse input, normal input/output
Anolog Output Terminals 2 Strings 0V~10V/0 (4) mA~20mA
Relay Output 2Strings Contact Type FormC
Motor Temperature Detection Support PT100/PT1000/KTY84
STO Interface SIL3/PLe Safe torque shutdown function
Com Com Protocol Modbus RTU (Standard), Pro ibus, CANopen, pro inet, Devicenet, Ethercat
Environment Altitude Without Derating Operation Within 2000m Altitude; 2000m～4000m, Each 100m lifting, Derating 1% (Current)
Operation Temperature -25℃~+40℃ (40℃~55℃ Derating)
Humidity 15%~95%, Without Condensation
Vibration 3M3, IEC60721-3-3
Storage Temperature -40℃~+70℃
Operation Place Indoor, Without direct sunlight, no flammable, corrosive gases, liquids and conductive particles
Accessory Encoding card, communication expansion card, voltage detection card
Protection Function Short circuit, over current, overload, over voltage, under voltage, phase loss, over temperature, external fault, etc.
Efficiency 5.5kW~22kW: ≥93%; Above 30kW: ≥95%
Installation Method Cabinet
Protection Degree IP20
Cooling Forced Air Cooling


High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance 0


  1. United States
    Boost your industrial efficiency with our HV500 drive, designed for seamless integration into advanced automation systems. Featuring high overload capacity (150% for 1min) and support for multiple protocols like Modbus RTU and EtherCAT, it ensures reliable performance in demanding applications such as manufacturing and logistics.

  2. Germany
    Experience precision engineering with the HV500, offering closed-loop vector control (CLVC) for 0.01% speed regulation accuracy. Ideal for Germany’s high-standard manufacturing sector, it includes SIL3/PLe safety functions and robust communication options like PROFIBUS, ensuring unmatched reliability in automated production lines.

  3. Japan
    Optimize energy savings in compact spaces with the HV500’s high efficiency (≥95% for 30kW+ models). Its wide input voltage range (200V–690V) and forced air cooling make it perfect for Japan’s dense industrial zones, while built-in PID support simplifies closed-loop control for precision machinery.

  4. India
    Overcome grid instability with the HV500’s automatic voltage adjustment (AVR) and tolerance to voltage unbalance (≤3%). Designed for India’s harsh environments, it operates reliably in temperatures up to 55°C and supports heavy-load applications, reducing downtime in sectors like textiles and agriculture.
